GENERAL FEATURES

• Mold type given by pressing: 3/16''- 1/4''-  5/16''-  3/8''-  1/2''-  5/8''- 3/4''-  1''-  1''1/4SH-  1''1/4 SP-  1''1/2 SH -  1''1/2 SP -  2''

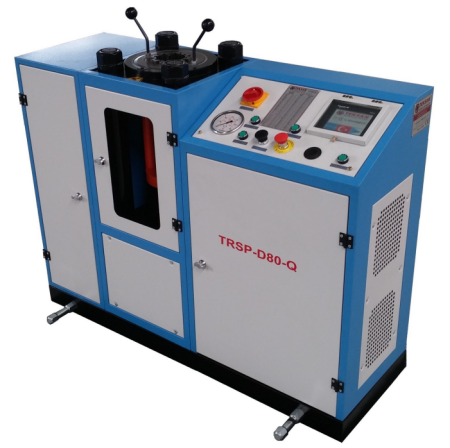

• It is a serial and automatic press that provides efficiency and convenience in pressing all kinds of flat and 2-sided 90° unions up to 3/16''-2''.
• It squeezes 8 molds moving on the slides at the same time and with equal force.
• There are 13 sets of molds on the press, and the total number of molds is 13 x 8 = 104.
• Kalıplar özel alaşımlı çelikten üretilmiştir.
• Molds are made of special alloy steel.
• Thanks to the specially designed mold apparatus (gun), the desired mold is disassembled and mounted in one operation.
• After the hose tightening process is finished, the return time can be adjusted.
• There is an emergency stop button in case of danger during tightening.
• In addition, the mold removal and assembly process is done manually.
• Operation and use of the press is done via the LCD digital operator panel.
• Thanks to the LCD digital operator, ±3 mm tightening adjustments can be made from the digital screen with an accuracy of 10% (0.1).
• When the diameter value to be pressed is entered on the digital operator panel according to the diameter of the hose to be pressed, the diameter value to be squeezed is automatically indicated on the screen.
• There is a diagram showing the clamping diameters on the press.
• No maintenance is required other than lubricating the press molds, custom molds can be produced upon request.
